Intensifier Solutions

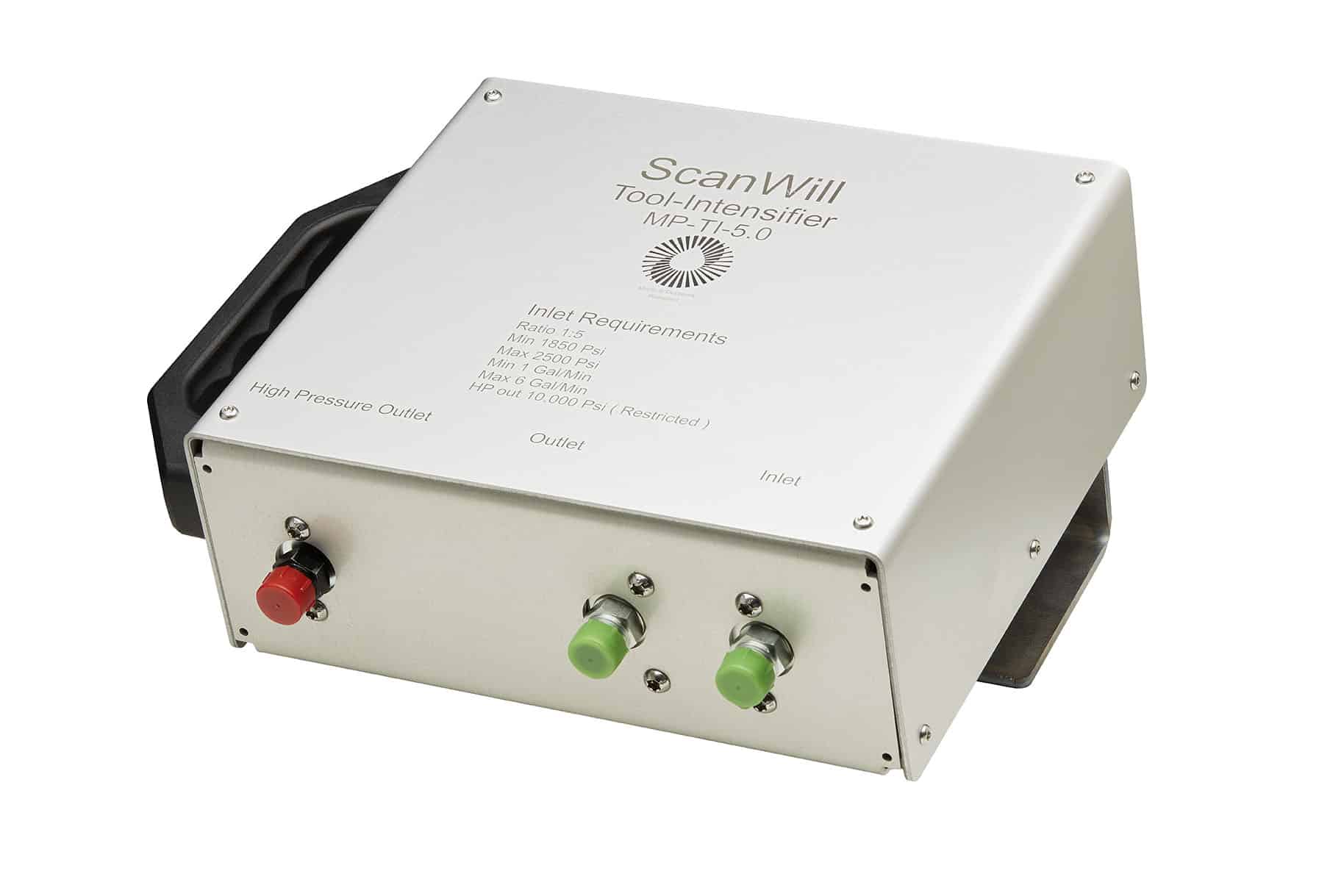

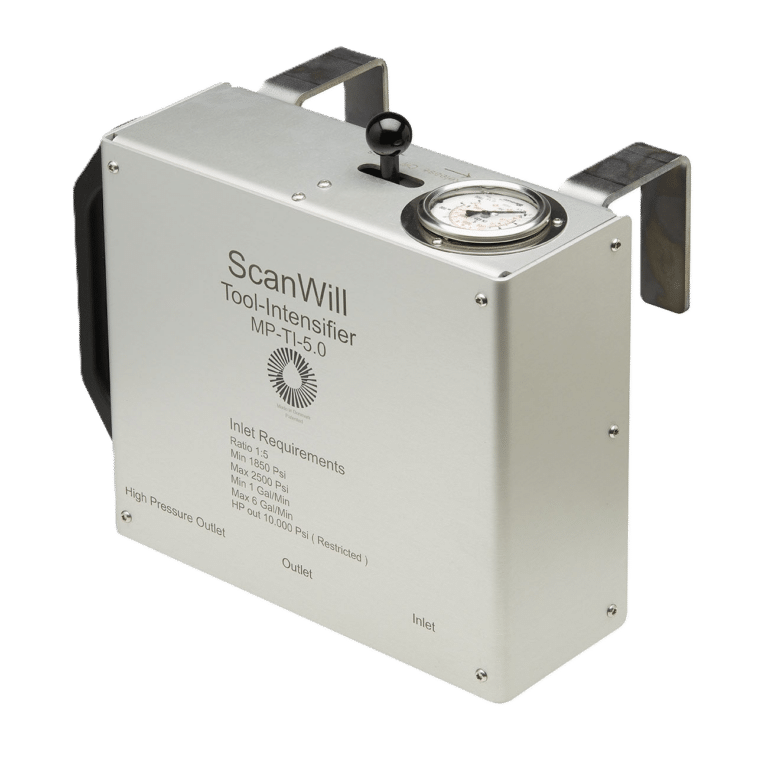

The ScanWill Tool Intensifier boosts the tool circuit pressure on utility trucks up to 700 bar (10,000 psi), allowing you to use high pressure tools without the need for a separate electric or gas engine hydraulic power unit.
Fast and Advanced Return Times
Designed for fast duty cycles with back pressures up to 48 bar (700 psi).
Simple, One-Handed Operation

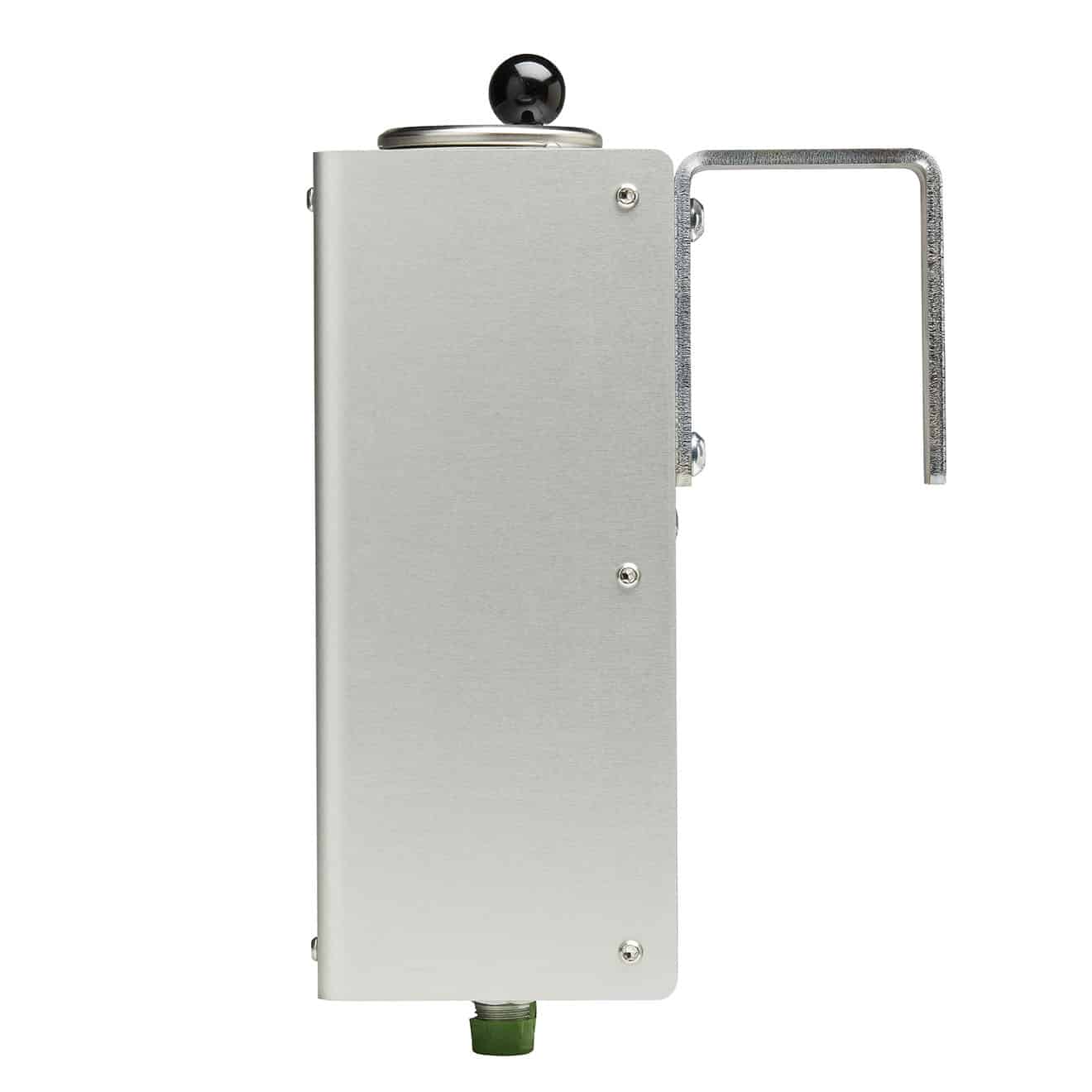

Easily secures to bucket with mounting brackets.
High Level of Precision
Measures ex. crimp head pressure easily with the built-in pressure gauge.
Built for continuous, full-day applications
Can be used continuously without having to cool down during the day.
Designed with Built-in Functions
Available with or without pressure intensifier, single acting control valve, pressure regulator, and safety relief valve.
High Max Operating Pressure
Boosts the hydraulic tool circuit in utility trucks, with an inlet pressure as low as 30 bar (435 psi).
| Type | Data |
|---|---|
| Min Inlet Pressure | 30 bar / 435 psi |
| Min Inlet Flow | 3 LPM / 0.8 GPM |
| Max Backpressure | 48 Bar / 700P si |
| High Pressure Output Port (HP) | 3/8″ NPT / 1/4″ BSP Male |
| Low Pressure Inlet Port | 3/8″ NPT 1/4″ BSP Male |
| Tank Return Port | 3/8″ NPT 1/4″ BSP Male |
| Control | Double Acting Spring Return |
| Mounting Brackets | Included |
| Couplings | Not Included (Available) |
| Outlet pressure | 200 – 700 bar (2,900 – 10,000 psi) |
| Dimensions (w x h) | 12” x 13.3” / 30,8 cm x 33,7 cm |
| Weight | 29 lbs / 13 kg |
| Ratio | 3,4 – 10.0 |
