LOW & MEDIUM PRESSURE

MP-F

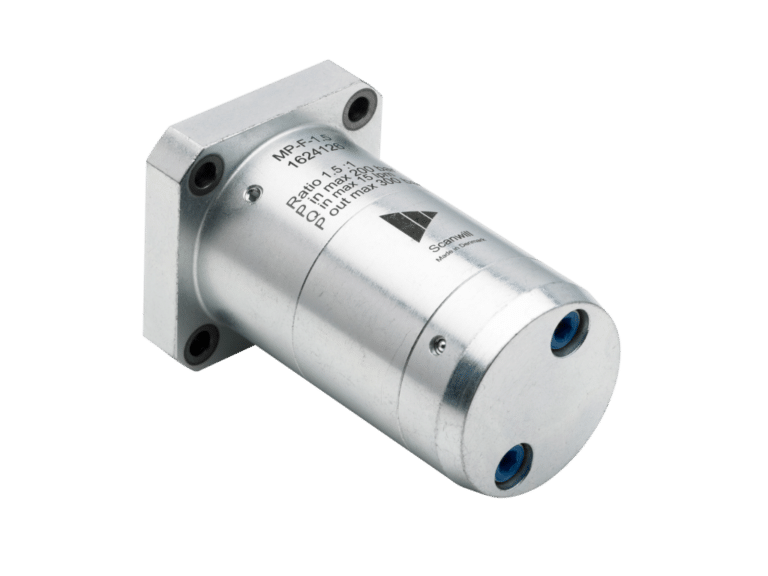

MultiPlier Flange is a hydraulic pressure intensifier for flange-on mounting.

Features

  • Flange-on pressure intensifier
  • End pressure range: 20 – 700 bar / 290 – 10,150 psi
  • Multiple intensification ratios available
  • Reciprocating – continuously delivers flow during pressure build-up
  • All high-pressure valves are integrated – including a P.O. check Valve POV

More information

Ratio
(i)		Max. Inlet Flow
(LPM / GPM)		Max. Supply Pressure
(bar / psi)		Max. Output Pressure
(bar / psi)
1.515.0 / 4.0200 / 2,900300 / 4,350
2.015.0 / 4.0200 / 2,900400 / 5,800
2.88.0 / 2.1200 / 2,900560 / 8,120
3.415.0 / 4.0200 / 2,900680 / 9,860
4.014.0 / 3.7175 / 2,538700 / 10,150
5.014.0 / 3.7140 / 2,030700 / 10,150
7.013.0 / 3.4100 / 1,450700 / 10,150
9.013.0 / 3.478 / 1,128700 / 10,150
Instructions
Step file

Related products

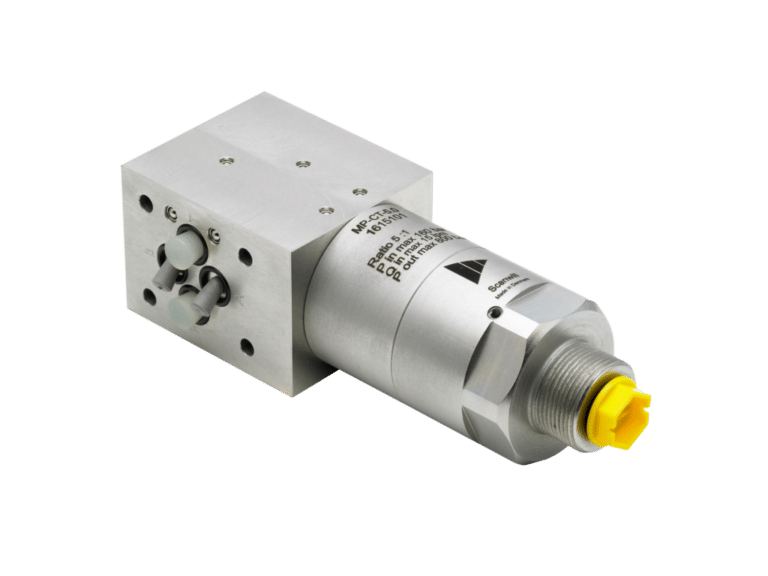

MP-CT

MultiPlier CT is a hydraulic pressure intensifier for Cetop/NG6 with separate high-pressure ports.

Read More

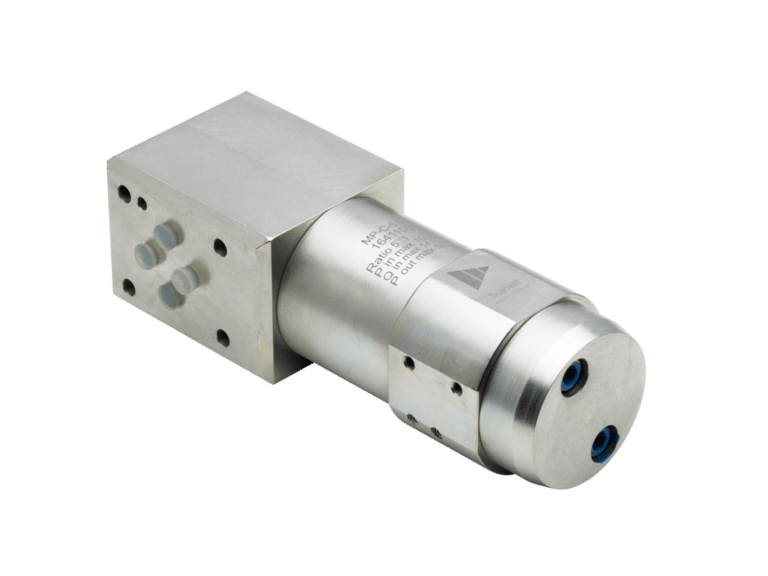

MP-C
